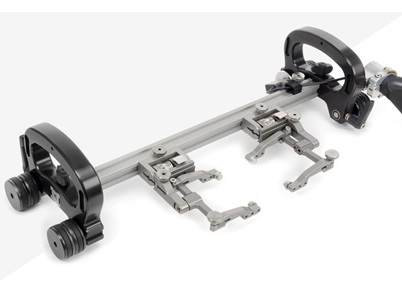

Magnetic wheels, a spring-loaded encoder, and adjustable slip joint probe holders complete the main components of the STIX - 2 Probe Phased Array Scanner. Add a frame bar, brakes, required tools and a rugged carrying case to complete this extremely functional, yet easy to operate the manual magnetic scanner. Translate two phased array probes around ferrous piping and vessels with minimal adjustment between scan setups.
GENERAL
Pipe Range, Circumferential: 10.2 cm (4 in) to flat Pipe Range, Internal Flat to 152.4 cm (60 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous materials
RADIAL SCANNER CLEARANCE
Radial Clearance: 13.06 cm (5.14 in)
SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Width: 17.5 cm (6.9 in)
Frame Length: 45.5 cm (17.9 in)
Frame Weight: 1.3 kg (2.8 lb)
Shipping weight: TBA kg (TBA)2
ENVIRONMENTAL SPECIFICATIONS
Environmental Sealing: Dust-tight, watertight (not submersible)
Operating Environment: -20°C (-4°F) to 50°C (122°F)
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 10.5 mm (0.41 in)
Maximum Wedge Width: 48.3 mm (1.9 in)3
