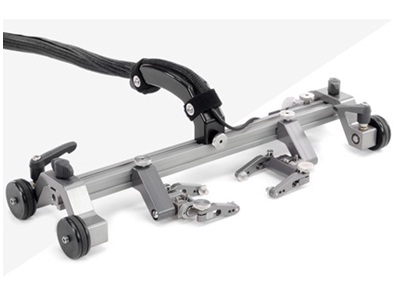

An easy to use manual magnetic scanner which includes a precision spring-loaded encoder. Essentially a plug and play device, the STIX - 2 Probe TOFD Scanner routes cables and hoses through the handle/cable management and then plug the encoder into any standard instrument and get to work quickly and efficiently with the specialized spring-loaded probe holders.
GENERAL
Circumferential Pipe Range: 10.2 cm (4 in) to flat
Internal Pipe Range: Flat to 152.4 cm (60 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 TOFD wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous materials
RADIAL CLEARANCE
Radial Scanner Clearance: 13.1 cm (5.1 in)
SIZE AND WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Width: 17.5 cm (6.9 in)
Frame Length: 45.4 cm (17.9 in)
Frame Weight: 1.19 kg (2.6 lb)
Shipping Weight: 4.1 kg (9 lb)2
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
SPRING-LOADED PROBE HOLDER SPECIFICATIONS
Wedge Width: 31 – 41 mm (1.2 - 1.6 in)
