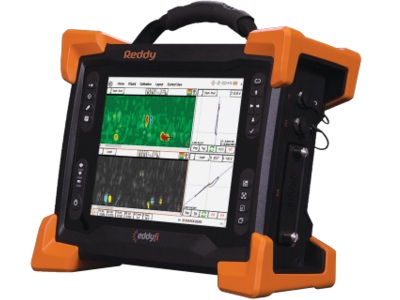

Eddy Current Array Instrument
Model: REDDY
Brand: Eddyfi/Canada; Country of Origin: Canada
Turnkey Eddy Current Array Made Portable
The Best of ECA. The Best of a Portable Instrument.
In our quest to make eddy current array (ECA) a truly universal and easy-to-use surface inspection method, we introduce the next step in the evolution of surface ECA: Reddy ™, which is designed to meet the unique in-service needs of the oil & gas, power generation, and aerospace industries.
Intuitive Real-Time C-Scan Imaging
High-quality C-scans convey a wealth of information. Analyzing eddy current signals is much more intuitive thanks to on-the-fly 2D imaging.
Massive Multi-Touch Display
The premium-quality 26.4 cm (10.4 in) LED display is optically bonded, non-reflective, and comes with a 3 mm (1/8 in) strengthened glass. It’s designed for gloved hands, under any lighting conditions. The multi-touch capabilities enable easily zooming and rotating views.
The Power of Eddy Current Array
The state-of-the-art electronics of Reddy offer up to 64 built-in SmartMUX™ channels, allowing for high-resolution, single-pass scans with wider coverage. Surface ECA with Reddy means a high probability of detection and significantly faster inspections.
Designed for Field Use
Sealed and designed for IP65. The magnesium alloy casing is tough, water and dust resistant, and cools without any external air exchange. The adjustable stand, the top handle, and four corner anchor points make it practical for on-site inspections.
Modern PC Capabilities
Equipped with a robust, 100 GB internal solid-state disk drive (SSD) for secure inspection data. The embedded, portable Windows® PC offers standard connect-anywhere capabilities and advanced productivity tools that optimize field testing.
The First Real Ecosystem for Surface Eddy Current Array
When you combine Reddy’s portability with Eddyfi’s standard ECA, tangential ECA (TECA™), and/or custom probes, you unlock the power of the first true standard system for ECA surface inspection.
Embedded Software
Reddy runs Magnifi ® GO, Eddyfi’s powerful — yet easy to use — acquisition and analysis software. It’s especially tailored for surface inspection and relies on well-designed wizards to create setups. Furthermore, Magnifi GO makes collecting and reporting data incredibly intuitive. Fast, from setup to reporting.
Desktop Data Analysis
Magnifi GO is compatible with its full-fledged big brother Magnifi. You are able to configure inspection setups for Reddy and analyze inspection data in depth on your desktop or laptop computer with 3D C-scan capabilities.
The Right Probe for the Right Application
Our surface array probe catalog* contains dozens of standard probes. They are designed for ferrous and non-ferrous materials, and for a variety of applications in the oil & gas, power generation, and aerospace industries.
| Application | Ferrous | Non-Ferrous |
| Welds | x | x |
| Far-side corrosion | x | |
| Surface-breaking indications | x | x |
| Near-surface indications | x |
If our standard probes don’t meet your requirements, you can still fully leverage the power of your Reddy — Eddyfi experts can design custom probes to suit your exact inspection needs.
KEY APPLICATIONS
Detecting and Sizing Cracks in Carbon Steel Welds
The Sharck ™ is based on tangential ECA (TECA™) technology, which was specifically developed for cracking in carbon steel. Not only does it enable measuring surface-breaking crack position and length, but also sizing cracks as deep as 10 mm (0.4 in). Furthermore, the Sharck allows simultaneously scanning the weld cap, toe area, and heat-affected zone for longitudinal and transverse cracks without surface preparation or paint removal.
Assessing Corrosion on Aluminum and Stainless Steel Tank Floors
Semi-flexible ECA probes can adapt to a tank floor’s curvature and other geometric features, offering sufficient penetration to scan through thick aluminum/stainless steel (over 0.250 in or 6.35 mm thick). So doing, the solution is capable of detecting and characterizing corrosion-related defects such as pitting and thinning affecting as little as 10 % of a plate’s thickness.
Detecting and Assessing Stress Corrosion Cracking in Base Metal
I-Flex ™ probes are the most versatile ECA probes of the industry. Thanks to their multiple built-in topologies and flexible bodies, they can address a variety of applications. I-Flex probes are perfect for detecting stress-corrosion cracking (SCC) in both ferrous and non-ferrous materials. Whether SCC is affecting the integrity of pipelines, pressure vessels, or tanks (on base metal or internal cladding), encoded scans performed with I-Flex probes allow efficient sizing of clusters.
TECHNICAL SPECIFICATIONS
ECA / ECT
| Channels | ECA: SmartMUX 32 or 64 ECT: 4 |
| Frequency range | 5 Hz–10 MHz |
| Frequencies | ECA: 2 simultaneous ECT: 4 simultaneous |
| ECA connector | 160-pin array |
| ECT connector | 19-pin Fischer |
| I/O connector | 12-pin Fischer |
| Generator output / Coil drive | Up to 20 Vpp |
| Injection modes | Multiplexed, simultaneous, continuous |
| Receiver gain | 41 dB range, 23–64 dB |
| Data resolution | 16 bits |
| Acquisition / Sampling rate | Up to 50 000 samples/s |
General
| Dimensions (W×H×D) | 355×288×127 mm (14.0×11.3×5.0 in) | ||
| Weight | With batteries | 6.6 kg (14.5 lb) | |
| Without batteries | 5.7 kg (12.5 lb) | ||
| Volume | 13 L (791 in3) | ||
| Power requirements | 100–240 VAC, 50–60 Hz | ||
| Power supply | Direct VAC or onboard batteries | ||
| Batteries | Type | Li-ion, rechargeable, DOT compliant | |
| Typical life | 6–8 hours | ||
| Display | 26.4 cm (10.4 in) Non-reflective (AR coating) Anti-fingerprint (oleophobic coating) 3 mm (1/8 in), chemically strengthened glass cover Optically bonded LCD and touchscreen Passive backlight enhancement |
||
| Video output | HDMI | ||
| Storage | SSD, 100 GB | ||
| Cooling | Sealed and fanless | ||
| Encoders | 2 axes, quadrature | ||
| Connectivity | Gigabit Ethernet, Wi-Fi, Bluetooth®, USB 2.0 (×3) | ||
| Probe recognition and setup | Automatic | ||
Environmental
| IP rating | Designed for IP65 |
| Operating temperature | 0–40 °C (32–104 °F) |
| Operating humidity | 95 %, non-condensing |
| Compliance | ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS |
